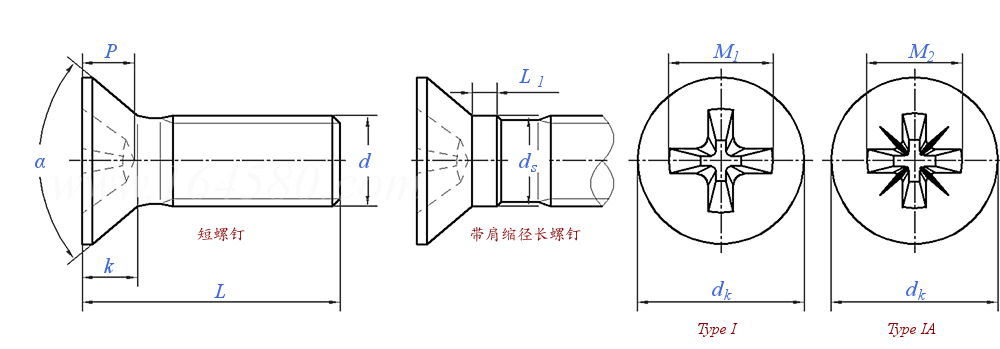

asme b 18.6.3 (t13) - 2013 82°小沉头十字槽螺钉 [table 13] (astm f837 / f468)

尺寸单位: inch

扫一扫分享

米/英制螺纹对照螺纹直径与受力截面积牌号等级

螺纹尺寸
d

(3)

(4)

(5)

(6)

(8)

代号	头部尺寸
d	公称
pp	粗牙/unc
d_s	最大值
	最小值
	自攻/a型	最小值
	自攻/其他类	最小值
d_k	最大值
	最小值
k	参考值
l₁	最小值
α	最大值
	最小值
槽号
m₁	参考
m₂	参考
p	i型	最大值
		最小值
	ia型	最大值
		最小值

3	4	4	5	5	6	8	8
0.1120	0.1250	0.1380	0.1380	0.1640	0.1640	0.1900	0.2160
40	40	32	32	32	32	24	24
0.112	0.125	0.138	0.138	0.164	0.164	0.190	0.216
0.106	0.119	0.131	0.131	0.157	0.157	0.181	0.207
0.105	0.118	0.131	0.131	0.157	0.157	0.183	0.209
0.106	0.119	0.131	0.131	0.157	0.157	0.181	0.207
0.187	0.212	0.212	0.237	0.237	0.262	0.312	0.312
0.167	0.191	0.191	0.215	0.215	0.238	0.285	0.285
0.052	0.060	0.052	0.068	0.052	0.069	0.085	0.069
0.062	0.062	0.062	0.062	0.062	0.062	0.062	0.062
82°	82°	82°	82°	82°	82°	82°	82°
80°	80°	80°	80°	80°	80°	80°	80°
1	1	1	2	2	2	2	2
0.100	0.122	0.122	0.148	0.158	0.176	0.182	0.192
0.100	0.122	0.122	0.148	0.158	0.176	0.182	0.192
0.061	0.082	0.082	0.075	0.085	0.103	0.110	0.120
0.045	0.066	0.066	0.052	0.062	0.080	0.087	0.097
0.058	0.079	0.079	0.071	0.081	0.099	0.107	0.117
0.042	0.063	0.063	0.053	0.063	0.081	0.089	0.099

螺纹尺寸
d

(10)

(10) ^④

(12) ^④

(10)

(12)

(1/4)

(5/16)

代号	头部尺寸
d	公称
pp	粗牙/unc
d_s	最大值
	最小值
	自攻/a型	最小值
	自攻/其他类	最小值
d_k	最大值
	最小值
k	参考值
l₁	最小值
α	最大值
	最小值
槽号
m₁	参考
m₂	参考
p	i型	最大值
		最小值
	ia型	最大值
		最小值

10	10	12	10	12	12	1/4	5/16
0.2160	0.2420	0.2420	0.2500	0.2500	0.3125	0.3125	0.3750
24	/	/	20	20	18	18	16
0.216	/	/	0.250	0.250	0.312	0.312	0.375
0.207	/	/	0.240	0.240	0.302	0.302	0.364
0.209	0.235	0.235	/	/	/	/	/
0.207	/	/	0.240	0.240	0.302	0.302	0.364
0.362	0.362	0.412	0.362	0.412	0.412	0.477	0.597
0.333	0.333	0.380	0.333	0.380	0.380	0.442	0.556
0.101	0.080	0.112	0.080	0.112	0.075	0.116	0.155
0.062	0.062	0.062	0.062	0.062	0.062	0.062	0.062
82°	82°	82°	82°	82°	82°	82°	82°
80°	80°	80°	80°	80°	80°	80°	80°
2	2	3	2	3	3	3	4
0.198	0.198	0.262	0.198	0.262	0.262	0.276	0.358
0.198	0.198	0.262	0.198	0.262	0.262	0.276	0.358
0.125	0.125	0.139	0.125	0.139	0.139	0.154	0.196
0.102	0.102	0.116	0.102	0.116	0.116	0.131	0.174
0.122	0.122	0.136	0.122	0.136	0.136	0.151	0.193
0.104	0.104	0.118	0.104	0.118	0.118	0.133	0.175

①,头部边缘为倒圆或平的。
②,短机械螺钉（short machine screws）指公称长度小于等于1 1/8英寸（5号及以下尺寸），或2英寸（6号及以上尺寸）的螺钉。
③,全牙自攻螺钉为短自攻螺钉（short tapping screw）。详见标准中4.3章节。
④,14#仅用于自攻螺钉。
⑤,对于a型自攻螺钉，最大直径不得超过最小值加上0.011英寸，对于所有其他自攻螺钉类型，最大直径不得超过基本螺钉直径。
⑥,头部凹槽详细尺寸请点击下方的“采用标准”
⑦,机械螺钉的螺纹长度：

1）螺纹规格≤5#:

公称长度≤3倍公称直径的应为满扣产品，头下螺纹肩距≤1倍螺距。

公称长度＞3倍公称直径到 1-1/8 in 的，允许头下肩距最大不超过2倍螺距。

若无其他规定，长螺钉的最小螺纹长度为1 in 。

2）螺纹规格≥6#:

公称长度≤3倍公称直径的应为满扣产品，头下螺纹肩距≤1倍螺距。

公称长度＞3倍公称直径到 2 in 的，允许头下螺纹肩距最大不超过2倍螺距。

若无其他规定，长螺钉的最小螺纹长度为 1.5 in 。
