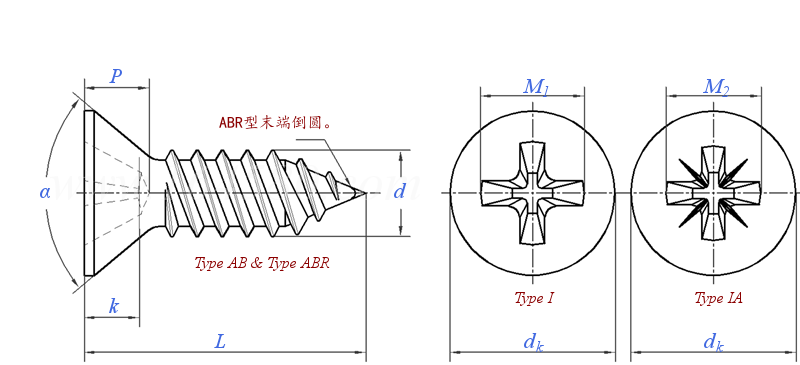

asme b 18.6.3 (t2-i/t2-ia t40) - 2013 十字槽82度沉头ab abr自攻螺钉

尺寸单位: inch
美标asme b18.6.3 (t2-i/t2-ia t40) - 2013 a 十字槽82度沉头ab abr自攻螺钉
asme b 18.6.3 (t2-i/t2-ia t40) - 2013 十字槽82度沉头ab abr自攻螺钉
扫一扫分享
螺纹尺寸
d
d ① 公称
pp
dk 最大值
最小值
k 参考值
m1 i 型
m2 ia型
p i 型 最大值
i 型 最小值
ia型 最大值
ia 型 最小值
槽号 i 型
ia型
α 最小值
最大值
l0 ④ 公称
y ④ 最大值 螺纹过渡长度(全螺纹)
b ④ 最小值 螺纹长度 (长螺钉)
0.0600 0.0730 0.0860 0.0990 0.1120 0.1250 0.1380 0.1510
48 42 32 28 24 20 20 19
0.112 0.137 0.162 0.187 0.212 0.237 0.262 0.287
0.096 0.120 0.144 0.167 0.191 0.215 0.238 0.262
0.035 0.043 0.051 0.059 0.067 0.075 0.083 0.091
0.062 0.070 0.096 0.100 0.122 0.148 0.168 0.176
0.062 0.070 0.096 0.100 0.122 0.148 0.168 0.176
0.036 0.044 0.056 0.061 0.082 0.075 0.095 0.103
0.020 0.028 0.040 0.045 0.066 0.052 0.072 0.080
0.037 0.045 0.053 0.058 0.079 0.071 0.091 0.099
0.021 0.029 0.037 0.042 0.063 0.053 0.073 0.081
0 0 1 1 1 2 2 2
0 0 1 1 1 2 2 2
80° 80° 80° 80° 80° 80° 80° 80°
82° 82° 82° 82° 82° 82° 82° 82°
7/16 9/16 5/8 3/4 13/16 15/16 1 1-1/8
0.021 0.024 0.031 0.036 0.042 0.050 0.050 0.053
0.360 0.440 0.520 0.590 0.670 0.750 0.830 0.910
螺纹尺寸
d
d ① 公称
pp
dk 最大值
最小值
k 参考值
m1 i 型
m2 ia型
p i 型 最大值
i 型 最小值
ia型 最大值
ia 型 最小值
槽号 i 型
ia型
α 最小值
最大值
l0 ④ 公称
y ④ 最大值 螺纹过渡长度(全螺纹)
b ④ 最小值 螺纹长度 (长螺钉)
0.1640 0.1900 0.2160 0.2500 0.3125 0.3750 0.4375 0.5000
18 16 14 14 12 12 10 10
0.312 0.362 0.412 0.477 0.597 0.717 0.760 0.815
0.285 0.333 0.380 0.442 0.556 0.670 0.715 0.765
0.100 0.116 0.132 0.153 0.191 0.230 0.223 0.223
0.182 0.198 0.262 0.276 0.358 0.386 0.402 0.418
0.182 0.198 0.262 0.276 0.358 0.386 0.402 0.418
0.110 0.125 0.139 0.154 0.196 0.225 0.241 0.256
0.087 0.102 0.116 0.131 0.174 0.203 0.219 0.234
0.107 0.122 0.136 0.151 0.193 0.222 0.238 0.253
0.089 0.104 0.118 0.133 0.175 0.204 0.22 0.235
2 2 3 3 4 4 4 4
2 2 3 3 4 4 4 4
80° 80° 80° 80° 80° 80° 80° 80°
82° 82° 82° 82° 82° 82° 82° 82°
1-1/4 1-3/8 1-5/8 1-13/16 1-13/16 1-7/8 1-7/8 1-7/8
0.056 0.062 0.071 0.071 0.083 0.083 0.100 0.100
0.980 1.140 1.300 1.500 1.500 1.500 1.500 1.500
①,若以小数规定公称直径，应省略小数前和小数点后第四位的零。
②,螺钉末端钉尖上不允许因螺纹辗压而形成的虚尖，允许略带圆弧或圆钝形末端。
③,小于等于8#的螺钉，螺纹牙顶平面宽度不应超过0.004in，大于8#的应不超过0.006in。
④,正常情况下，当螺钉长度小于等于其公称长度l0时应采用全螺纹，过渡螺纹长度应小于等于y；若螺钉长度大于其公称长度l0可采用半牙型式，但其螺纹长度应不小于b。
